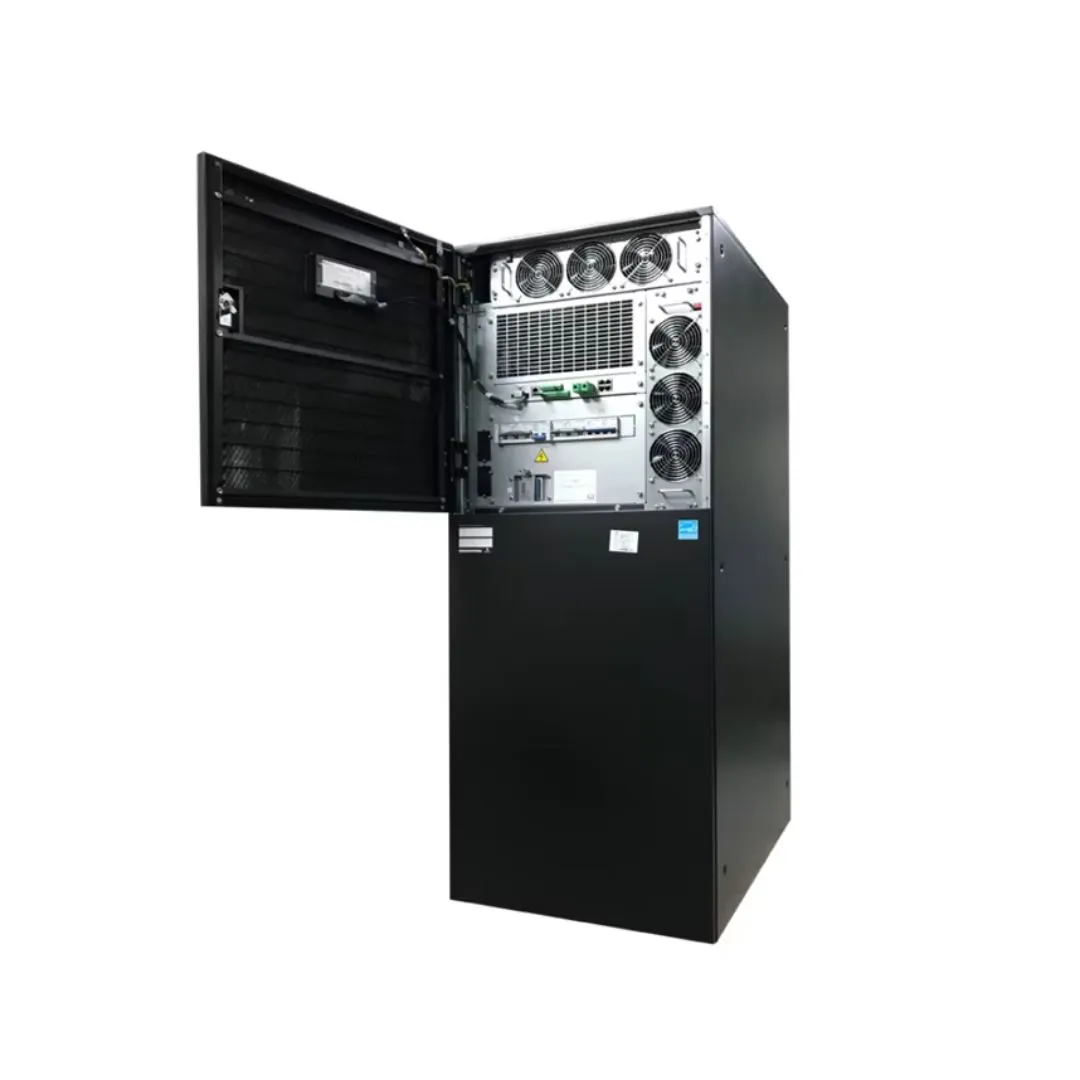

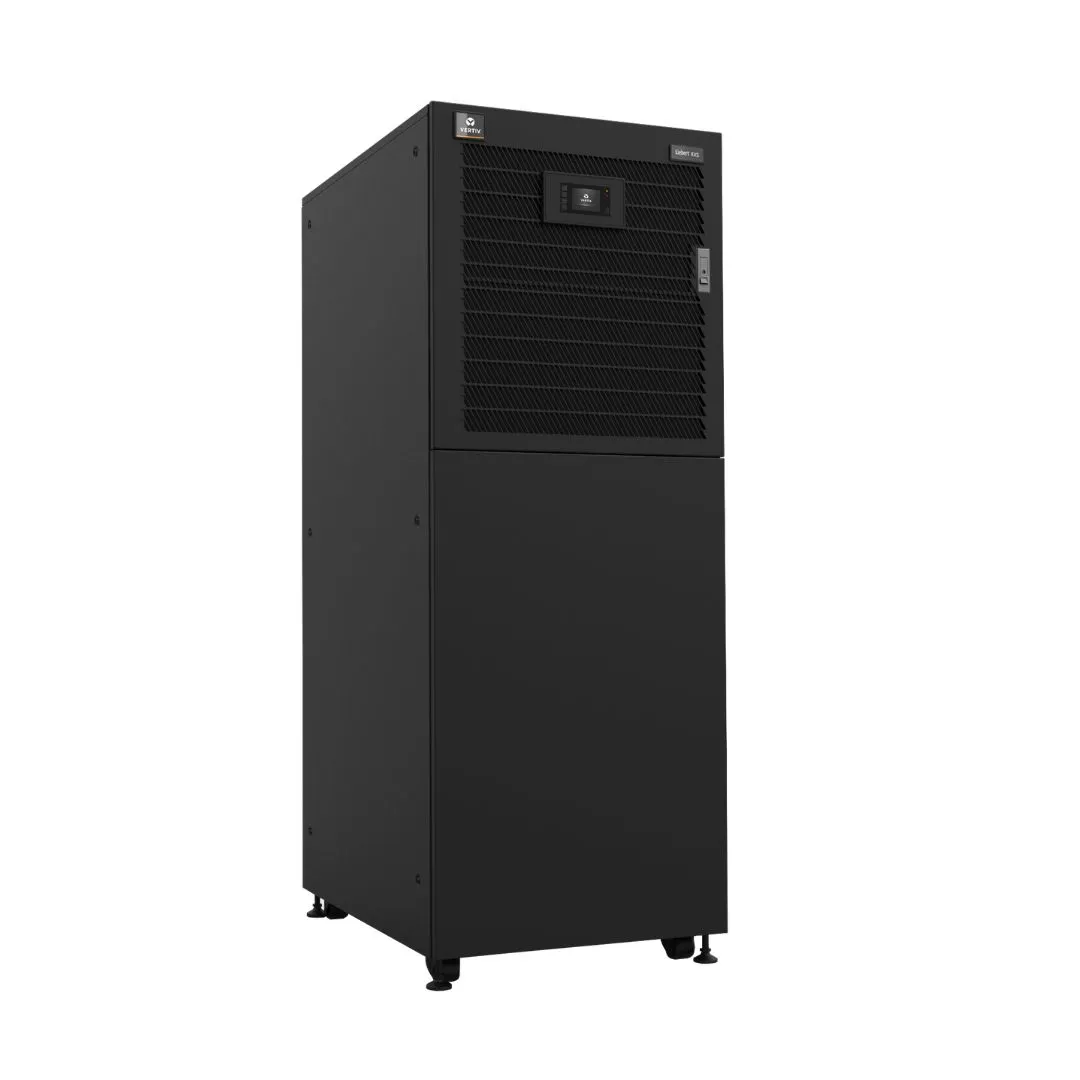

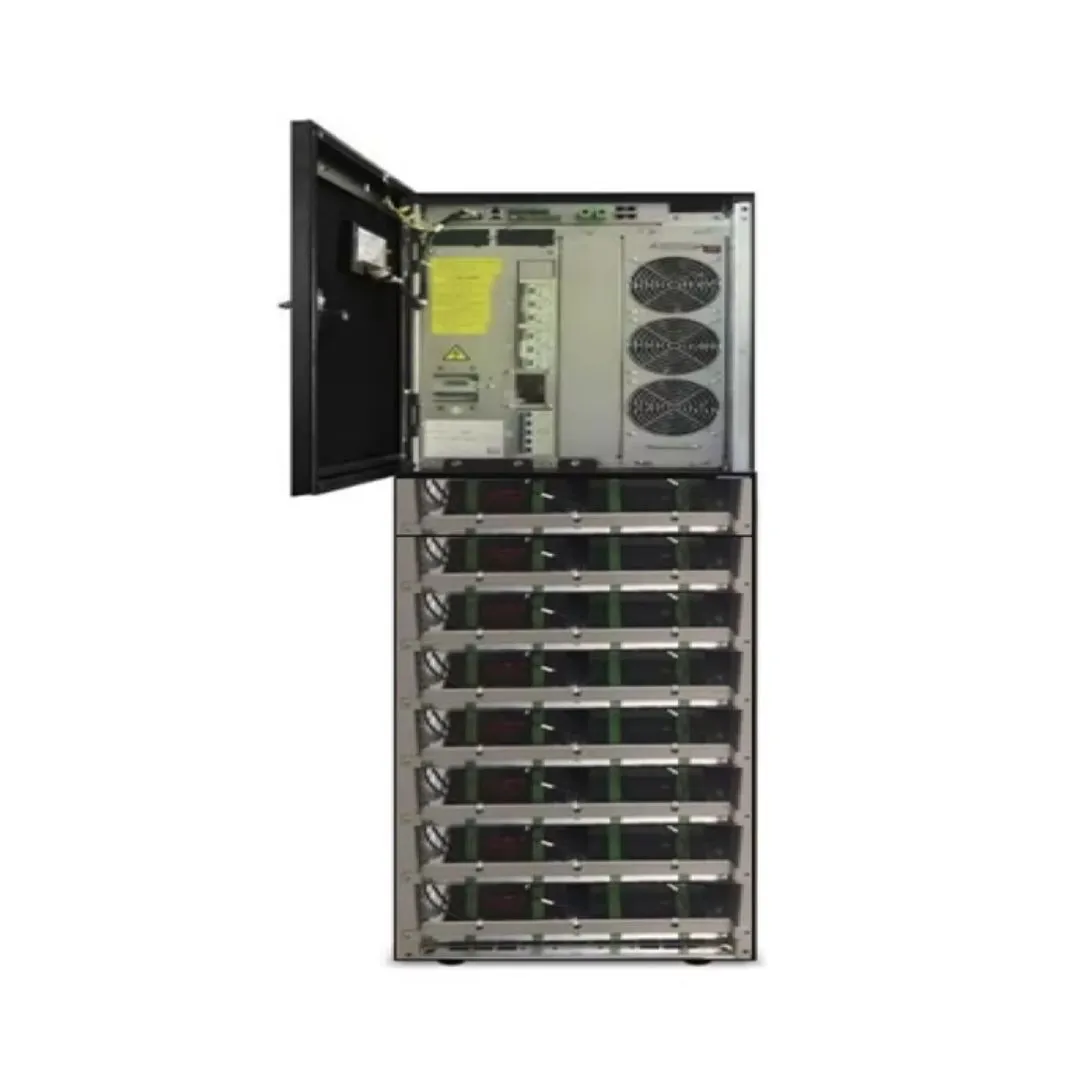

Vertiv Liebert EXS 60kVA UPS

(0 customer reviews)

Category: UPS Brand: Vertiv

Description

Description

Key Technical Specifications

Capacity: 60 kVA / 60 kW (Unity output power factor PF = 1.0)

Topology: Online double-conversion VFI-SS-111

Input / Output Voltage: 380 / 400 / 415 V (3-phase + N + PE)

Double Conversion Efficiency: Up to 96.2%

ECO Mode Efficiency: Up to 99%

Dimensions (W x D x H): 600 × 850 × 1600 mm (standard tower frame)

Net Weight: Approx. 215 kg (excluding batteries and internal transformer options)

Operating Temperature: Up to 40 °C

Protection Level: IP20 standard (IP31 optional)

Core Features & Benefits

High Power Density: Compact footprint saves valuable floor space in server rooms.

Scalable Battery Configuration: Supports flexible block configurations (26 to 40 battery blocks per string) with shared parallel battery support.

Built-in Maintenance Bypass: Features integrated maintenance isolation, bypass, and rectifier input breakers for safe servicing.

Smart Monitoring: Fully compatible with Vertiv communication cards, telemetry, and Vertiv Power Insight management software.
